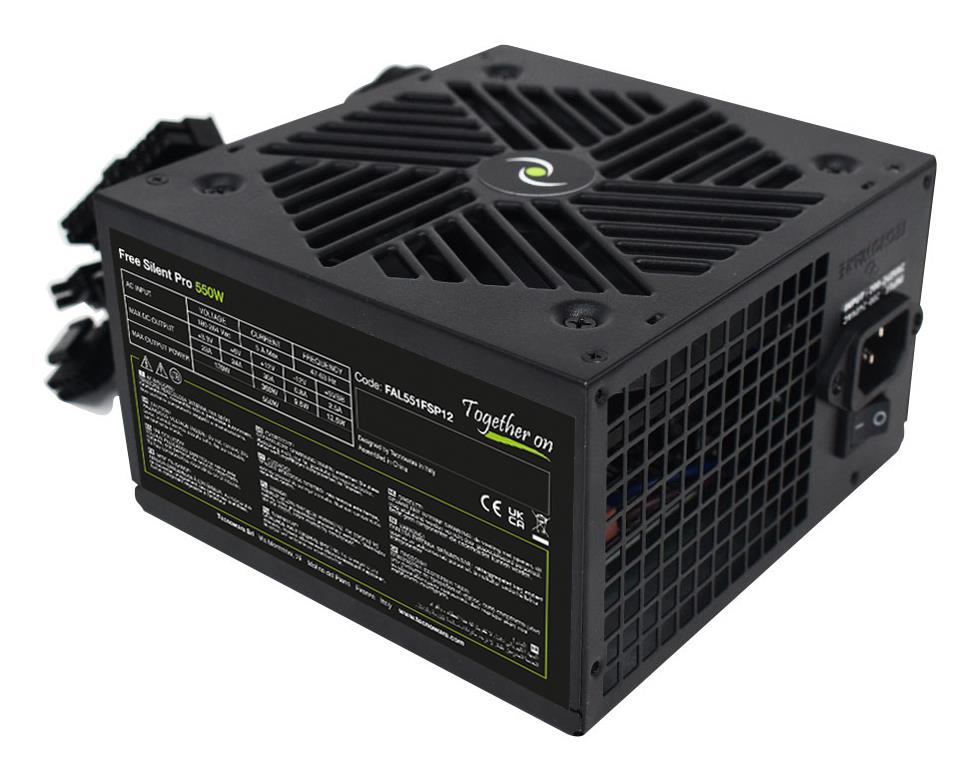

Power Supply TECNOWARE FAL551FSP12 ATX 550 W FAL551FSP12

Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.

• Internal Power Supply for Computers
• High Efficiency (>85%) and High Operation Noise
• Active PFC >0.9
• Dimensions: 140x86x150 mm (WxHxD)
• Input voltage 230 Vac 50Hz
• Temperature control of the fan speed
• Flat connection cables from 500mm to 800mm
• Surge protection
• Overload protection
• Short circuit protection

Summary: Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: CE, RoHS | Vendor Homepage: https://www.tecnoware.com/en-US/Dettaglio/Articolo/883 | Total power: 550 | AC input voltage: 180 - 264 | AC input frequency: 47 - 63 | Input current: 5 | Power factor: 0.9 | Power Factor Correction (PFC) type: Active | Combined power (+3.3V): 170 | Combined power (+12V): 360 | Combined power (+5V): 170 | Combined power (-12V): 9.6 | Combined power (+5Vsb): 12.5 | Max output current (+3.3V): 23 | Max output current (+12V): 30 | Max output current (+5V): 24 | Max output current (-12V): 0.8 | Max output current (+5Vsb): 2.5 | Efficiency: 85 | Power protection features: Overload/Short circuit/Surge protection | Motherboard power connector: 20+4 pin ATX | Motherboard power cable length: 500 | Number of SATA power connectors: 4 | Peripheral (Molex) power connectors (4-pin): 2 | PCI Express power connectors (6+2 pin): 1 | PCI Express power cable length: 500 | CPU power connector (4+4 pin): Yes | CPU power cable length: 550 | ATX power connector (20+4 pin): Yes | Cabling type: Non-Modular | 80 PLUS certification: No | Purpose: PC | Power supply unit (PSU) form factor: ATX | ATX version: 2.31 | Product colour: Black | Fan diameter: 120 | Number of fans: 1 | On/off switch: Yes | Operating temperature (T-T): 0 - 40 | Storage temperature (T-T): -15 - 40 | Compliance certificates: CE/RoHS | Width: 140 | Depth: 150 | Height: 86 | Weight: 1000 | Package type: Box | Unit Calculated Weight: 1.13 | Product Net Weight: 0.8 | Unit Calculated Volume: 0.0034 | Units per Shipping Box: 8 | Units per Pallet: 0 | Shipping Box Height: 17 | Name: CASE PSU ATX 550W/FAL551FSP12 TECNOWARE | Model name: FAL551FSP12
