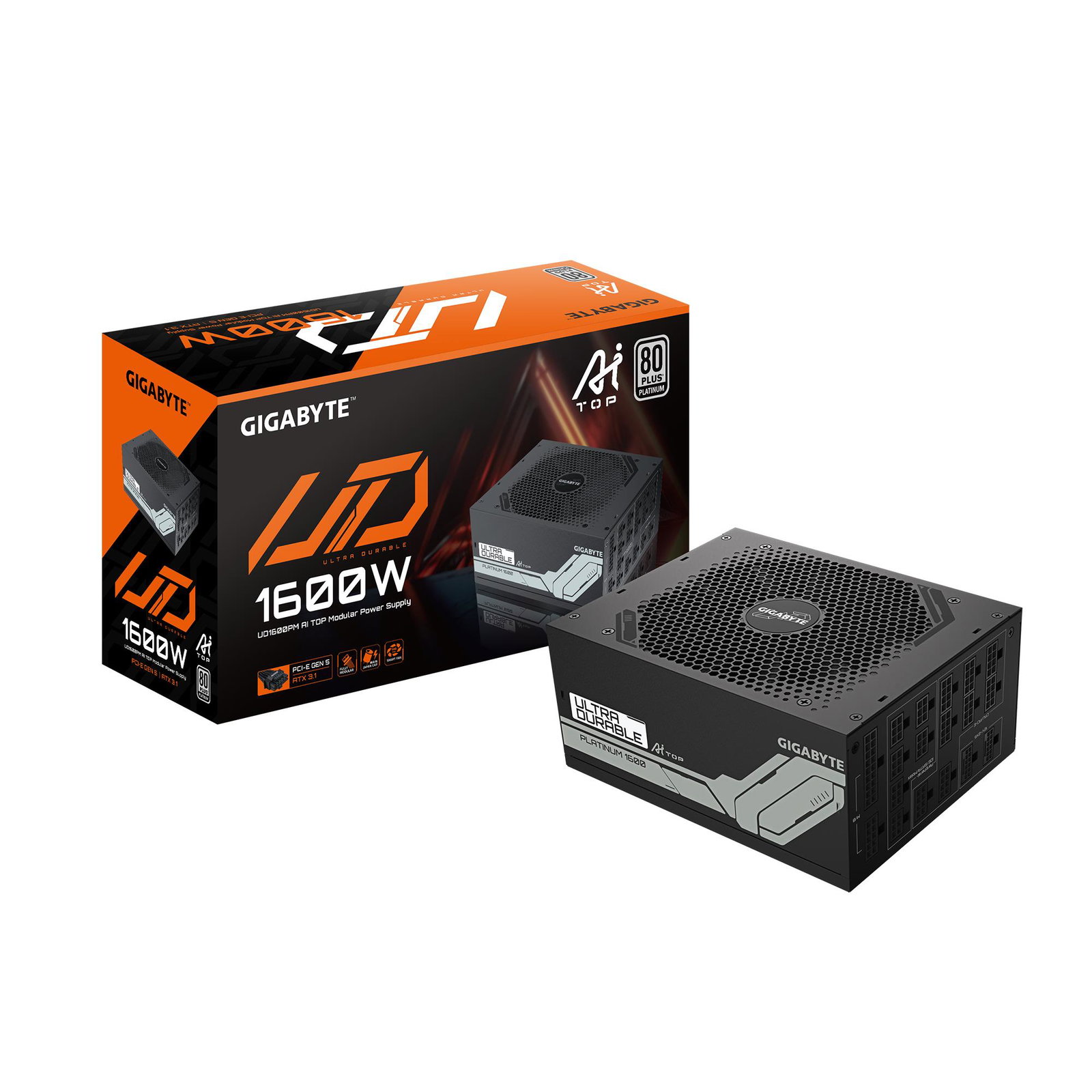

Power Supply GIGABYTE GP-UD1600PM PG5 1600 Watts Efficiency 80 PLUS PLATINIUM PFC Active GP-UD1600PMPG5

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

• 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
• ATX 3.1 and PCIe Gen 5.0 ready
• Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
• 80 PLUS Platinum certified
• Fully modular design
• Powerful single +12V rail

Summary: GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm | Vendor Homepage: https://www.gigabyte.com/ | Total power: 1600 | AC input voltage: 100 - 240 | AC input frequency: 50/60 | Input current: 15 - 7.5 | Power factor: 0.9 | Power Factor Correction (PFC) type: Active | Combined power (+3.3V): 150 | Combined power (+12V): 1600 | Combined power (+5V): 150 | Combined power (-12V): 9.6 | Combined power (+5Vsb): 17.5 | Max output current (+3.3V): 30 | Max output current (+12V): 133.3 | Max output current (+5V): 30 | Max output current (-12V): 0.8 | Max output current (+5Vsb): 3.5 | Efficiency: 92 | Hold time: 16 | Power Good signal delay range: 100 - 150 | Power protection features: Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage | Motherboard power connector: 20+4 pin ATX | Motherboard power cable length: 610 | Number of SATA power connectors: 16 | SATA power cable length: 150/650 | Peripheral (Molex) power connectors (4-pin): 6 | EPS power connector (4+4 pin): Yes | PCI Express power connectors (6+2 pin): 8 | CPU power connector (4+4 pin): Yes | ATX power connector (20+4 pin): Yes | PCI Express connector: Yes | Cabling type: Fully-Modular | 80 PLUS certification: 80 PLUS Platinum | Purpose: PC | Power supply unit (PSU) form factor: ATX | ATX version: 3.1 | Bearing technology: DBB | Mean time between failures (MTBF): 100000 | Product colour: Black | Cooling type: Active | Fan diameter: 120 | Number of fans: 1 | Fan location: Top | On/off switch: Yes | Width: 150 | Depth: 190 | Height: 86 | Weight: 5300 | Package width: 410 | Package depth: 219 | Package height: 145 | Package weight: 5575 | Package type: Box | Warranty period: 10 | Unit Calculated Weight: 5.99 | Product Net Weight: 3 | Unit Calculated Volume: 0.0165 | Units per Shipping Box: 4 | Shipping Box Height: 25 | Name: CASE PSU ATX3.1 1600W/GP-UD1600PM PG5 GIGABYTE | Model name: GP-UD1600PM PG5
