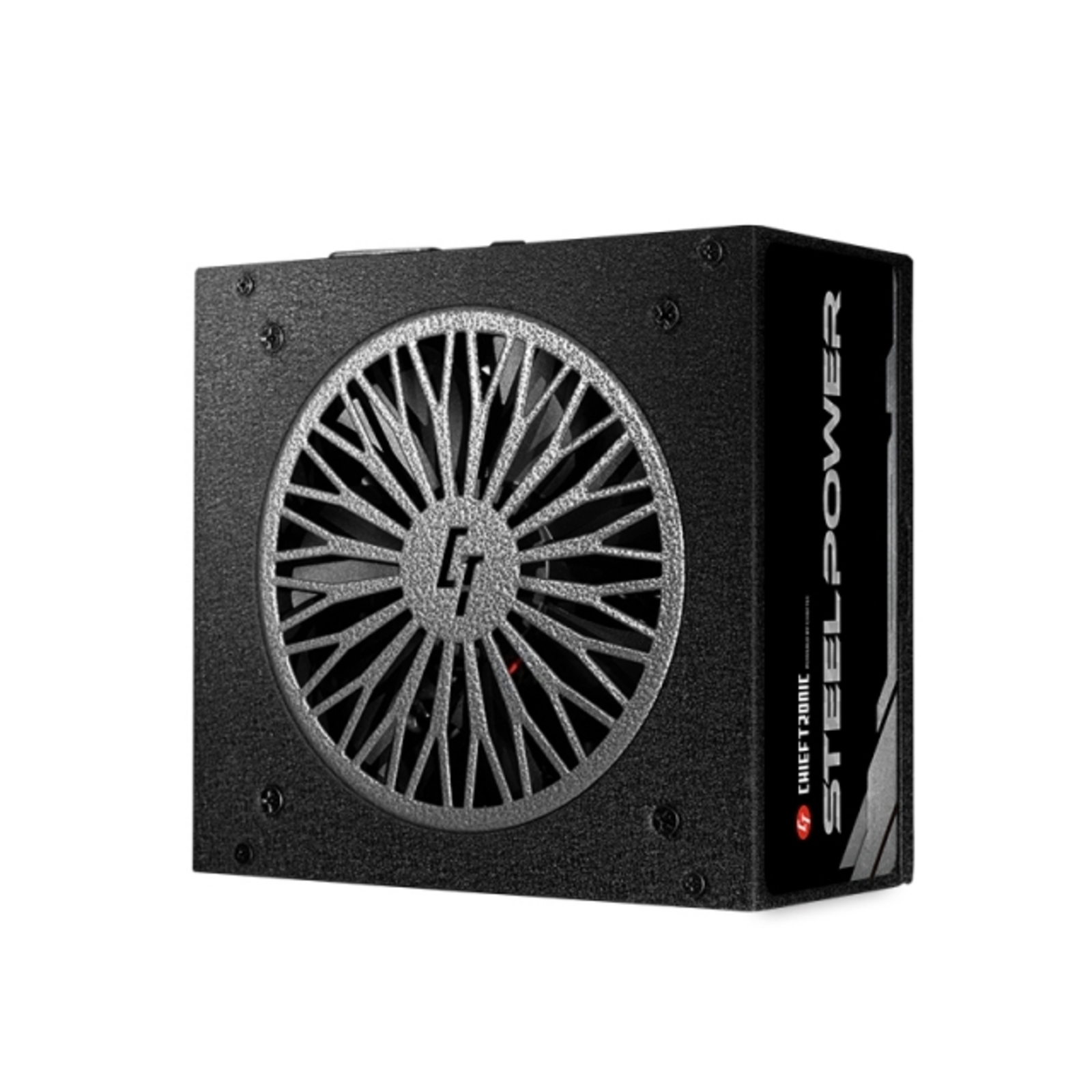

Chieftec BDK-650FC power supply unit 650 W 20+4 pin ATX ATX Black – photo 1
CHIEFTEC

Chieftec BDK-650FC power supply unit 650 W 20+4 pin ATX ATX Black

R2,631
incl. VAT: R3,025
  • Stock: Backordered - ETA 7-10 Days
  • Brand: CHIEFTEC
  • Model: BDK-650FC
  • Weight: 2.43 kg
  • EAN: 753263077424
  • Product code: 991784
Backordered goods Delivery in 7–10 working days

Available Options

R2,631 incl. VAT: R3,025

Key features

  • 80 PLUS® Bronze certied efficiency
  • Fully modular cable management
  • Half-bridge LLC converter with DC-to-DC technology
  • Premium Japanese capacitors
  • FDB 12cm fan

Key features

  • 80 PLUS® Bronze certied efficiency
  • Fully modular cable management
  • Half-bridge LLC converter with DC-to-DC technology
  • Premium Japanese capacitors
  • FDB 12cm fan
Tags: chieftec pc power supplies , chieftec pc power supplie

Description

The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.

Price History

Price History

Current price2,631 ZAR
2,7622,6312,49909-1709-2510-0410-1210-2110-29
Regular price

Specifications

Power
Total power 650 W
AC input voltage 100 - 240 V
AC input frequency 47 - 63 Hz
Input current 10 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 110 W
Combined power (+12V) 648 W
Combined power (+5V) 110 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 12.5 W
Max output current (+3.3V) 20 A
Max output current (+12V) 54 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 2.5 A
Power protection features Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin) 3
Motherboard power cable length 65 cm
Number of SATA power connectors 6
SATA power cable length 150,500 mm
Peripheral (Molex) power cable length 500 mm
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
Floppy drive power connector 1
Cabling type Fully-Modular
Performance
Purpose PC/Server
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Bronze
ATX version 2.3
Bearing technology FDB
Design
Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Certificates
Compliance certificates CE, RoHS
Certification CB EAC FCC
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 1.65 kg
Packaging data
Package weight 2.2 kg
Technical details
Sustainability certificates ErP
Sustainability compliance Yes
Logistics data
Harmonized System (HS) code 84733020
