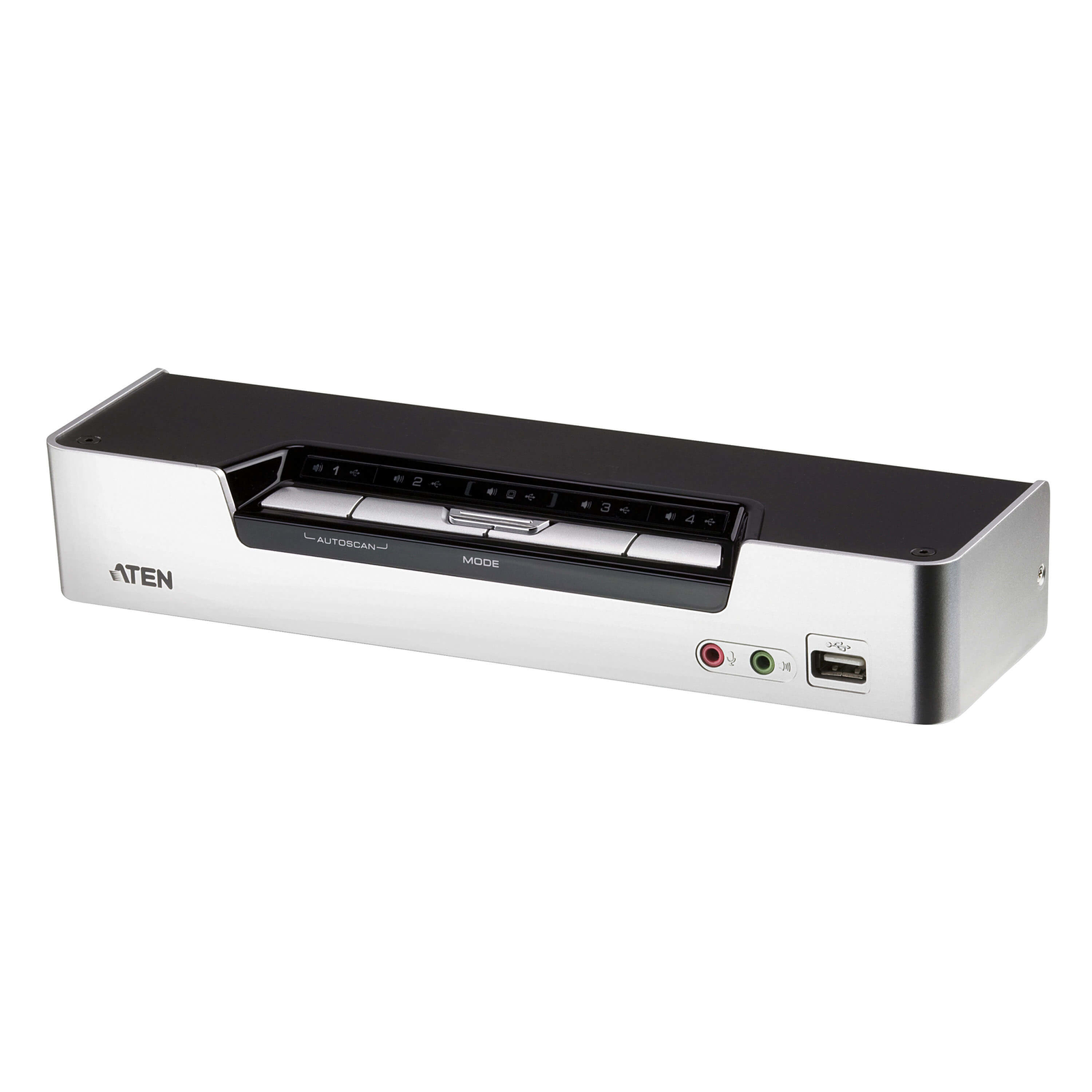

ATEN CS1794 KVM switch Rack mounting Black, Stainless steel – photo 1
ATEN CS1794 KVM switch Rack mounting Black, Stainless steel – photo 2
ATEN CS1794 KVM switch Rack mounting Black, Stainless steel – photo 3
ATEN

ATEN CS1794 KVM switch Rack mounting Black, Stainless steel

R5,189
incl. VAT: R5,968
  • Stock: Backordered - ETA 7-10 Days
  • Brand: ATEN
  • Model: CS1794
  • EAN: 672792100260
  • Product code: 992013
Backordered goods Delivery in 7–10 working days

Available Options

R5,189 incl. VAT: R5,968

Key features

  • 4-port HDMI USB 2.0 KVMP™ Switch
  • One USB console controls four HDMI-interface computers and two additional USB devices
  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
  • HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux,and Mac
  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable
  • * 1. PC keyboard combinations emulate Mac Keyboards
  • 2. Mac keyboards only work with their own computers

Key features

  • 4-port HDMI USB 2.0 KVMP™ Switch
  • One USB console controls four HDMI-interface computers and two additional USB devices
  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
  • HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
  • Dolby True HD and DTS HD Master Audio support
  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
  • Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer
  • Supports widescreen resolutions
  • Multiplatform support - Windows, Linux,and Mac
  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Complete keyboard emulation for error-free booting
  • Mac keyboard support and emulation*
  • Auto Scan Mode for monitoring all computers and HDMI devices
  • Firmware Upgradable
  • * 1. PC keyboard combinations emulate Mac Keyboards
  • 2. Mac keyboards only work with their own computers
Tags: aten audio & video cable adapters & couplers , aten audio & video cable adapters & coupler

Description

With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.

Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.

Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Price History

Price History

Current price5,189 ZAR
5,5645,3605,15509-1709-2410-0210-0910-1710-24
Regular price

Specifications

Ports & interfaces
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type HDMI
Console ports 3.5mm headphone, 3.5mm mic, HDMI, USB A
HDMI ports quantity 5
Console USB ports quantity 2
USB 2.0 ports quantity 4
USB connector type USB Type-A, USB Type-B
Audio connections Yes
Headphone outputs 6
Number of microphone inputs 6
DC-in jack Yes
Performance
HD type WUXGA
Maximum resolution 1920 x 1200 pixels
Scan interval 1,99 s
HDCP Yes
Power on detection Yes
Firmware upgradeable Yes
Design
Rack mounting Yes
Product colour Black, Stainless steel
Rack capacity 1U
Housing material Metal, Plastic
LED indicators Yes
Push button Yes
Hot keys Yes
Display
Built-in display No
On Screen Display (OSD) No
Power
Power source DC
Input voltage 5.3 V
Power consumption (typical) 4.8 W
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Mac operating systems supported Yes
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 262.3 mm
Depth 76.8 mm
Height 44 mm
Weight 530 g
Logistics data
Harmonized System (HS) code 85176200
