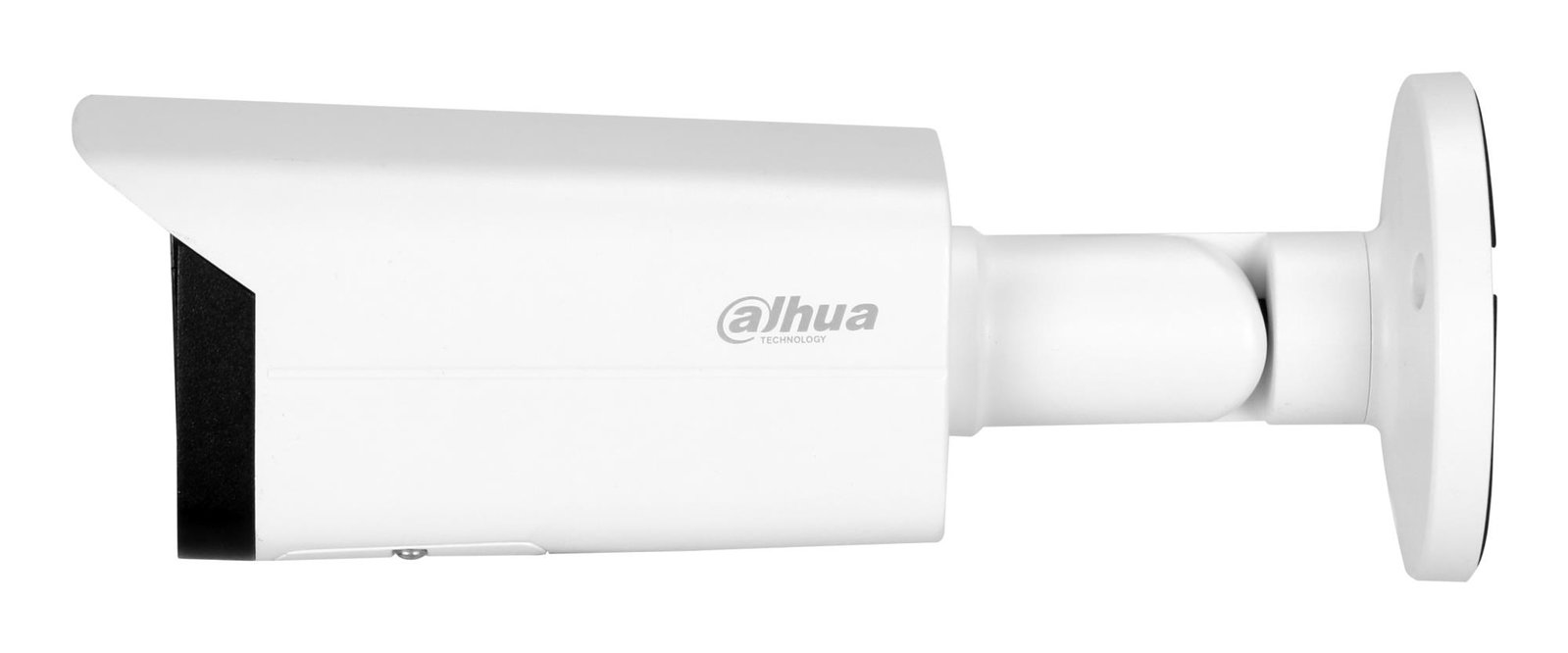

NET CAMERA 8MP IR BULLET/HFW5842T-ASE-0360B-S3 DAHUA

• 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image
• Outputs max. 8 MP (3840×2160) @25/30fps
• Built-in IR LED, and the max. illumination distance is 80 m
• ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
• 12 VDC/PoE power supply; ePoE
• IP67 and IK10 protection
• SMD 3.0

Summary: Dahua Technology WizMind IPC-HFW5842T-ASE-0360B-S3. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 87°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Detect distance: 98 m, Observe distance: 39.2 m, Recognize distance: 19.6 m | Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/S-Series/8MP/IPC-HFW5842T-ASE=S3 | Form factor: Bullet | Housing material: Metal | IK code: IK10 | International Protection (IP) code: IP67 | Mounting type: Pole clamp | Product colour: White | Alarm input/output: Yes | Connectivity technology: Wired | Day/night mode: Yes | Dynamic range: 120 | Placement supported: Outdoor | Type: IP security camera | Wide Dynamic Range (WDR): Yes | Angle of rotation: 360 | Camera pan control: Yes | Camera shutter speed: 1/3 - 1/100000 | Camera tilt control: Yes | Lens viewing angle, diagonal: 99 | Lens viewing angle, horizontal: 87 | Lens viewing angle, vertical: 49 | Minimum illumination: 0.0004 | Number of Privacy masking areas: 8 | Pan range: 0 - 360 | Tilt angle range: 0 - 90 | White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp | Number of sensors: 1 | Optical sensor size: 1/1.8 | Progressive scan: Yes | Sensor type: CMOS | Closest focusing distance: 2.3 | Detect distance: 98 | Fixed focal length: 3.6 | Fixed focus: Yes | Identify distance: 9.8 | Maximum aperture number: 1.6 | Observe distance: 39.2 | Recognize distance: 19.6 | LED type: IR | Night vision: Yes | Night vision distance: 80 | Number of illumination LEDs: 4 | Back Light Compensation (BLC): Yes | Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Frame rate: 30 | Gain control type: Auto | Highlight Compensation (HLC): Yes | Maximum resolution: 3840 x 2160 | Noise reduction: Yes | Noise reduction technology: 3D noise reduction | Region of Interest (ROI) encoding: Yes | Total megapixels: 8 | Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG | Video recording: Yes | Video streaming: Yes | Audio formats supported: G.711 µ-law/G.711 A-law/G.723/G.726/PCM | Built-in microphone: Yes | Bluetooth: No | Ethernet interface type: Fast Ethernet | Ethernet LAN: Yes | Networking standards: IEEE 802.1x/IEEE 802.3af | Quality of Service (QoS) support: Yes | Streaming method: Multicast | Supported network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P | Wi-Fi: No | Built-in HDD: No | Card reader integrated: Yes | Compatible memory cards: MicroSD (TransFlash) | Maximum memory card size: 1000 | RAM capacity: 2048 | ROM capacity: 4096 | DC-in jack: Yes | Ethernet LAN (RJ-45) ports: 1 | Alarm input channels: 1 | Alarm output channels: 1 | Human and vehicle targets classification: Yes | IP address filtering: Yes | Mirror: Yes | Network access storage (NAS): Yes | Video motion detection: Yes | DC output voltage: 12 | Power consumption (max): 8.3 | Power consumption (typical): 4.1 | Power source type: DC,PoE | Operating temperature (T-T): -40 - 60 | Storage relative humidity (H-H): 10 - 95 | Storage temperature (T-T): -40 - 60 | Mobile operating systems supported: Android/iOS | Height: 75.9 | Length: 244.1 | Weight: 820 | Width: 79 | Compliance certificates: CE/Federal Communications Commission (FCC)/UL | Package weight: 1080 | Manual: Yes | Number of cameras: 1 | Model: IPC-HFW5842T-ASE-0360B-S3 | Units per Pallet: 0 | Units per Shipping Box: 10 | Unit Calculated Volume: 0.005038 | Unit Calculated Weight: 1.3
