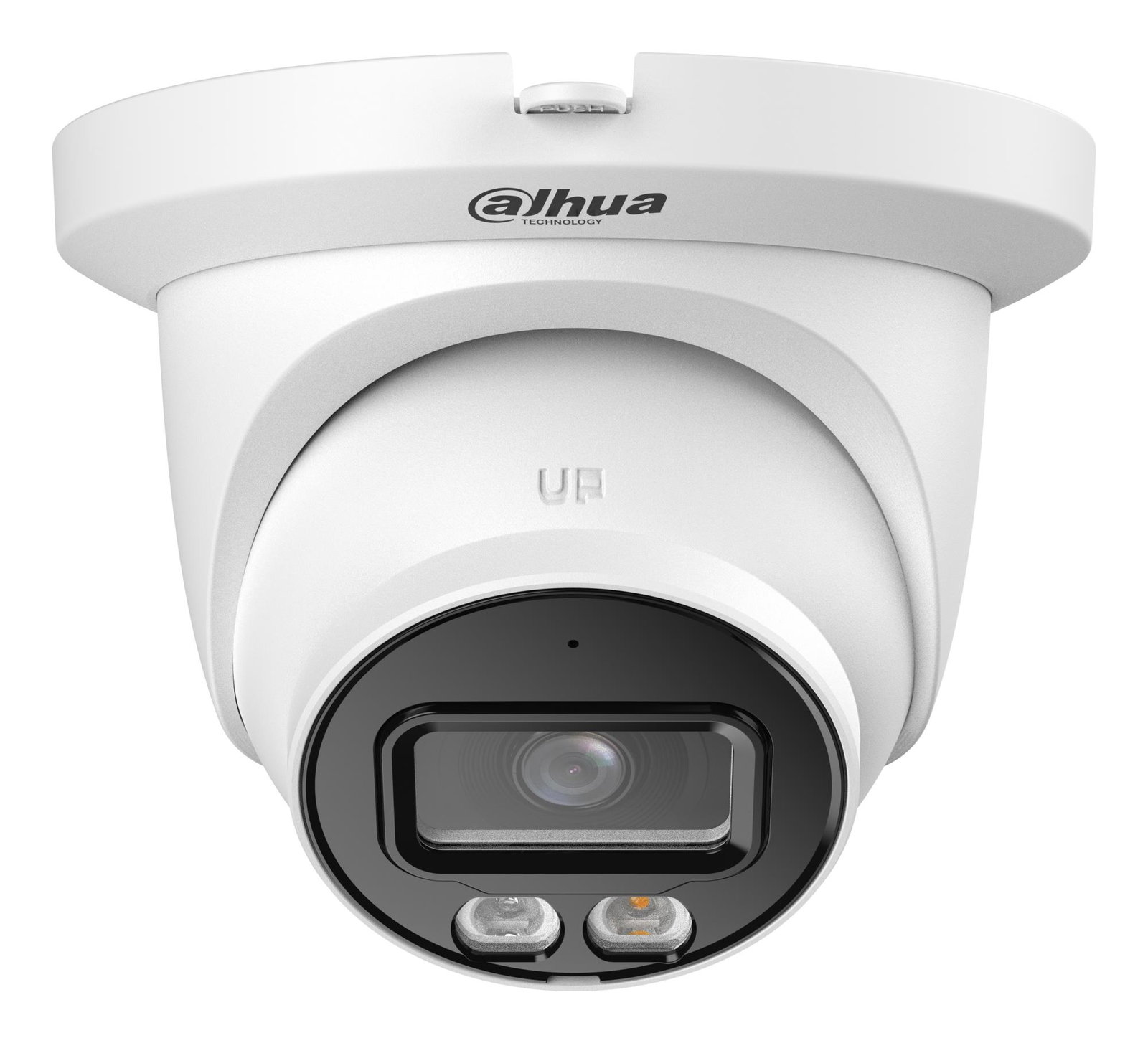

Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B security camera Turret IP security camera Indoor 3288 x 1850 pixels Ceiling/Wall/Pole

• 1/2.7" CMOS image sensor, low luminance, and high definition image
• Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Supports max. 256 G Micro SD card; built in Mic
• 12 VDC/PoE power supply, easy for installation

Summary: Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m | Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL | Form factor: Turret | Mounting type: Ceiling/Wall/Pole | Product colour: White | Housing material: Metal/Plastic | International Protection (IP) code: IP67 | Type: IP security camera | Connectivity technology: Wired | Placement supported: Indoor | Wide Dynamic Range (WDR): Yes | Day/night mode: Yes | Dynamic range: 120 | Camera pan control: Yes | Camera tilt control: Yes | Minimum illumination: 0.0007 | Angle of rotation: 360 | Lens viewing angle, horizontal: 112 | Lens viewing angle, vertical: 61 | Lens viewing angle, diagonal: 132 | Tilt angle range: 0 - 78 | Pan range: 0 - 360 | White balance: Auto/Manual/Natural/Outdoor/Regional custom/Street lamp | Camera shutter speed: 1/3 - 1/100000 | Number of Privacy masking areas: 4 | Number of sensors: 1 | Optical sensor size: 1/2.7 | Progressive scan: Yes | Sensor type: CMOS | Detect distance: 61.2 | Observe distance: 24.5 | Recognize distance: 12.2 | Fixed focus: Yes | Identify distance: 6.1 | Maximum aperture number: 1.6 | Closest focusing distance: 1 | Fixed focal length: 2.8 | Night vision: Yes | Night vision distance: 30 | Colour night vision distance: 30 | LED type: IR | Number of illumination LEDs: 2 | Maximum resolution: 3288 x 1850 | Total megapixels: 6 | Video compression formats: H.264/H.264B/H.264H/H.265/M-JPEG | Video recording: Yes | Frame rate: 30 | Video streaming: Yes | Noise reduction: Yes | Noise reduction technology: 3D noise reduction | Gain control type: Auto/Manual | Back Light Compensation (BLC): Yes | Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Highlight Compensation (HLC): Yes | Region of Interest (ROI) encoding: Yes | Audio formats supported: G.711 µ-law/G.711 A-law/G.726/PCM | Built-in microphone: Yes | Ethernet LAN: Yes | Ethernet interface type: Fast Ethernet | Networking standards: IEEE 802.1x | Supported network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P | Wi-Fi: No | Bluetooth: No | Quality of Service (QoS) support: Yes | Streaming method: Multicast | Built-in HDD: No | Card reader integrated: Yes | Compatible memory cards: MicroSD (TransFlash) | Maximum memory card size: 256 | ROM capacity: 128 | RAM capacity: 256 | Ethernet LAN (RJ-45) ports: 1 | DC-in jack: Yes | Human and vehicle targets classification: Yes | IP address filtering: Yes | Mirror: Yes | Network access storage (NAS): Yes | Video motion detection: Yes | Power source type: DC,PoE | Power consumption (typical): 2.5 | Power consumption (max): 4.6 | DC output voltage: 12 | Operating temperature (T-T): -40 - 60 | Storage temperature (T-T): -40 - 60 | Mobile operating systems supported: Android/iOS | Height: 99.1 | Diameter: 121.9 | Weight: 530 | Compliance certificates: CE | Package weight: 670 | Number of cameras: 1 | Manual: Yes | Unit Calculated Weight: 0.725 | Product Net Weight: 0.53 | Unit Calculated Volume: 0.002769 | Units per Shipping Box: 20 | Unit Width: 14 | Units per Pallet: 0 | Shipping Box Height: 26 | Unit Depth: 14 | Unit Height: 11 | Name: NET CAMERA 6MP EYEBALL/IPC-HDW2649TM-S-IL-0280B DAHUA | Model: IPC-HDW2649TM-S-IL-0280B
