StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface – photo 1
Out of Stock / Please Enquire ETA
STARTECH

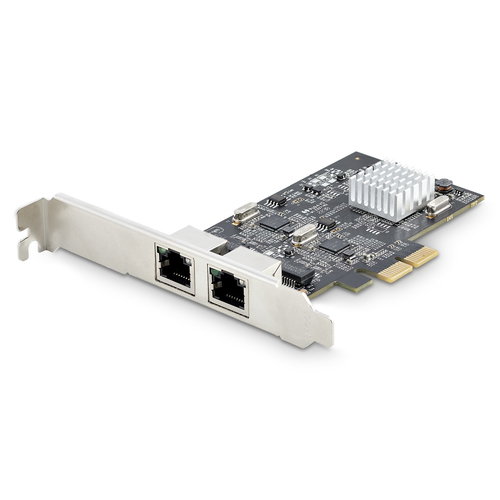

StarTech.com 2-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Dual-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface

R3,801
incl. VAT: R4,371
  • Stock: Out of Stock / Please Enquire ETA
  • Brand: STARTECH
  • Model: PR22GI-NETWORK-CARD
  • Weight: 0.15 kg
  • Dimensions: 21 × 15 × 4 cm
  • EAN: 065030898140
  • Product code: 628041
Please Inquire
R3,801 incl. VAT: R4,371
We will email you when the product is back in stock.

Key features

  • 2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps dual-port network card with Intel I225-V chip; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x2; Independent Ethernet controllers for reliable performance
  • IT MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
  • BUILD QUALITY: LAN card features: built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduced EMI for reliable communication
  • COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Multi-gigabit network interface card for PC is compatible with Windows and Linux; Low profile bracket included for hardware compatibility
  • SPECIFICATIONS: 2x RJ45 Ports, 2.5/1Gbps and 100/10Mbps (Independent controllers) NIC, IEEE 802.3bz (2.5GBASE-T), Full Duplex, Auto MDIX, PCIe 2.0 x2, Intel I225-V, 9K Jumbo Frames, VLAN Tagging, WoL, PXE boot

Key features

  • 2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps dual-port network card with Intel I225-V chip; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x2; Independent Ethernet controllers for reliable performance
  • IT MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
  • BUILD QUALITY: LAN card features: built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduced EMI for reliable communication
  • COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Multi-gigabit network interface card for PC is compatible with Windows and Linux; Low profile bracket included for hardware compatibility
  • SPECIFICATIONS: 2x RJ45 Ports, 2.5/1Gbps and 100/10Mbps (Independent controllers) NIC, IEEE 802.3bz (2.5GBASE-T), Full Duplex, Auto MDIX, PCIe 2.0 x2, Intel I225-V, 9K Jumbo Frames, VLAN Tagging, WoL, PXE boot
Tags: startech computer interface cards & adapters , startech computer interface cards & adapter

Description

Dual-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T support

This dual-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across two 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.

Increased Network Speed

The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, two Intel I225-V chipsets are used, providing independent Ethernet controllers to each port.

Enhance Existing Hardware

The network interface card connects via an available x2 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows and Linux.

This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.

Price History

Price History

Current price4,034 ZAR
4,0513,9533,85608-2409-0409-1609-2710-0910-20
Regular price

Specifications

Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Ethernet
Ethernet LAN (RJ-45) ports 2
PCI version 2
Network
Maximum data transfer rate 2500 Mbit/s
Networking standards IEEE 1588, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.1as, IEEE 802.1p, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3az, IEEE 802.1x
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet
Ethernet LAN data rates 10,1000,2500,100,2000 Mbit/s
Copper ethernet cabling technology 100BASE-TX, 10BASE-TX, 1000BASE-T, 2500BASE-T
Wake-on-LAN ready Yes
Auto MDIX IEEE Yes
Jumbo frames support Yes
Jumbo frames 9000
Quality of Service (QoS) support Yes
VLAN tagging Yes
Design
Internal Yes
Component for PC/Server
Product colour Black
Chipset Intel I225-V
LED indicators Activity, Link
System requirements
Windows operating systems supported Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise
Linux operating systems supported Yes
Server operating systems supported Windows Server 2019, Windows Server 2022
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -10 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 112 mm
Depth 120 mm
Height 18 mm
Weight 60 g
Packaging data
Low-profile bracket Yes
Package width 156 mm
Package depth 218 mm
Package height 38 mm
Package weight 66 g
Packaging content
Quick installation guide Yes
Logistics data
Master (outer) case width 450 mm
Master (outer) case length 380 mm
Master (outer) case height 330 mm
Products per master (outer) case 40 pc(s)
